Mark Of Excellence non retractable lap seat belt and retractable lap seat belt sets in original factory configurations with plastic capped push button buckle with metal base with Mark Of Excellence logo on black background on buckle press area. Webbing is 3 panel original appearance webbing manufactured to feel and look like early production seat belt webbing used in most 1963-75 makes and models and is softer and more flexible than current production webbing. Buckle design, logo,webbing thickness and appearance is not guaranteed to match an existing seat belt. All seat belts and hardware listed are new with the seat belts manufactured or assembled in the USA with USA certification tag confirming compliance with current FMVSS(Federal Motor Vehicle Safety Standards) 209 and 302.

Additional Buckle Options:Click on buckle picture to view seat belts available with the buckle shown.

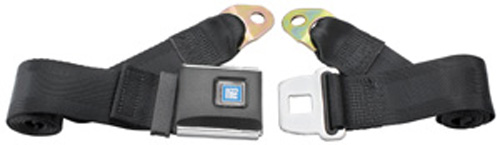

Non Retractable Lap Belt

Product Notes: Click On Picture To Enlarge.

Anchor End Fittings: 30 degree. Zinc chromate w/9/16" mounting bolts holes.

Buckle(Rmfg): Plastic capped. Metal chrome base. Measures 2 1/4" W x 2 5/8" L.

Buckle Press Area: 1 1/8" x 1 1/8" with angled inside and ends.

Buckle Press: 3/4 x 3/4 with blue Mark Of Excellence logo framed in silver on black background.

Length 60": Adjustable buckle side 36". Fixed latch side 24".

80296 Retractor w/Install Instructions: Clip-on. Chrome "Roll-A-Belt" style.

CVR100B Cover: Snaps on to bolt head covering end fitting. Sold each.

For product questions or ordering assistance call (302)629-8508.

Mounting Kits: The bolts include with mounting kits will not fit original underbody reinforcement plates and should be used with reinforcing plates or mounting hardware included with kit.

MH33 Standard Mounting Kit includes zinc chromate hex head bolts, washers, nuts and oversize underbody reinforcing washers.

MH30 Retrofit Mounting Kit includes zinc chromate hex head bolts, washers and threaded underbody reinforcing plates to be used to replace damaged or missing plates or to add support to mounting points when seat belts are being installed in a location they were not previously dealer or factory installed. Standard mounting kit is not required when ordering.

Retractable Lap Belt Set, Front

Product Notes: Click On Picture To Enlarge.

Includes retractable lap seat belts for driver and passenger. Includes retractor covers.

See Non Retractable Lap Belt Above To Add Seat Belts For Front Center Or Rear Seat

Buckle(Rmfg): Black plastic cap. Metal chrome base. Measures 2 1/4" W x 2 5/8" L.

Buckle Press Area: 1 1/8" x 1 1/8" with angled inside and ends.

Buckle Press: 3/4 x 3/4 with blue Mark Of Excellence logo framed in silver on black background.

Buckle Side End Fitting: 30 degree. Zinc chromate w/9/16" mounting bolts holes.

Buckle Side Length: 39" from center bolt hole to buckle end.

Retractor Cover Height: Angled. 4" tallest point and 1 5/8" shortest point.

retractor Cover Length: 4 1/2".

Retractor Cover Width: 2 5/8" widest point and 2 1/4" narrowest point.

Retractor Webbing Length: 18" when fully extended to end of latch.

CVR100B: For buckle side end fitting.Snaps on to bolt head covering end fitting.Sold each.

For product questions or ordering assistance call (302)629-8508.

Mounting Kits: The bolts include with mounting kits will not fit original underbody reinforcement plates and should be used with reinforcing plates or mounting hardware included with kit. One mounting kit required per set.

MH31 Standard Mounting Kit includes zinc chromate hex head bolts, washers, nuts and oversize underbody nforcing washers.

MH32 Retrofit Mounting Kit includes zinc chromate hex head bolts, washers and threaded underbody reinforcing plates to be used to replace damaged or missing plates or to add support to mounting points when seat belts are being installed in a location they were not previously dealer or factory installed. Standard mounting kit is not required when ordering.

Non Retractable Shoulder Harness Set

Product Notes: Click On Picture To Enlarge.

Includes shoulder harness assembly for driver and passenger.

Buckle(Rmfg): Black plastic cap. Metal chrome base. Measures 2 1/4" W x 2 5/8" L.

Buckle Press Area: 1 1/8" x 1 1/8" with angled inside and ends.

Buckle Press: 3/4 x 3/4 with blue Mark Of Excellence logo framed in silver on black background.

End Fittings:

Length:

CVR100B Cover: Snaps on to bolt head covering end fitting. Sold each.

For product questions or ordering assistance call (302)629-8508.

Rear seat combination retractable lap seat belt with shoulder harness kits utilizing compact ELR web sensitive emergency locking retractors that allow for movement when buckled and will lock on sudden webbing movement designed to mount flat on to a steel reinforced deck panel or package tray under the rear window, raised wheel well, back of a seat or in the trunk area.

Kit includes combination retractable lap seat belt with shoulder harness for 2 persons/positions with installation instructions. A deck/package tray or trunk mounting kit is required to complete the installatiion. When installing the retractors in the trunk to protect the webbing where the deck/package tray has been cut to allow the webbing and latch end to feed thru a bezel kit is available.

Product Notes: Click On Picture To Enlarge

Buckle: Measures 2 1/4" W x 2 5/8" L. Metal underside black plastic cap.

Retractor: Web sensitive emergency locking with ful cover.

Retractor Webbing Length: 110" when fully extended.

Center Seat Belt Length 60": Adjustable buckle side 36". Fixed latch side 24".

For product questions or ordering assistance call (302)629-8508.

Related Items

Cover, Bolt Head

Product Notes: Click On Picture To Enlarge

Snaps on to bolt head of any bolt used in the retrofit or mounting kits listed.

For product questions or ordering assistance call (302)629-8508.

Cover, End Fitting

Product Notes: Click On Picture To Enlarge

Fits any end fitting used on the seat belts listed.

Snaps on to bolt head covering the bolt head and the anchor end fitting. Sold each.

For product questions or ordering assistance call (302)629-8508.

Reinforcement Plates, Underbody

Product Notes: Click On Picture To Enlarge

RB1-1: Curved steel with attached 7/16-20 weldnut. Measures 4 1/2" x 3".

RB1: Same as RB1 except pair.

RB4: Measures 3" x 1 1/2" with 7/16-20 threaded bolt hole.

RB4-2: Same as RB4 except pair.

All measurements are approximate.

For product questions or ordering assistance call (302)629-8508.
