Seat belt related items including deck lid bezels, end fittings, end fitting covers, buckles including vintage chrome lift latch, standard pushbutton and Ford starburst complete with latch ends. Replacement and chrome Roll-A-Belt style clip on webbing retractors, buckle end sleeves, door post brackets more. Some items have a minimum quantity requirements.All items listed are for a quanity of 1 unless indicated.

Individual Mounting Components

Standard Mounting Kits

Retrofit Mounting Kits include underbody reinforcing plates which should be used to add support to mounting points.

Bezel

Quantity:

Product Notes: Click On Picture To Enlarge.
  • Can be deck panel or interior trim panel mounted.
  • Used to protect webbing sides and to provide a finished look.
  • Plastic. Can be painted to match interior color.
  • Measurements are approximate.
  • For product questions or ordering assistance call (302)629-8508.

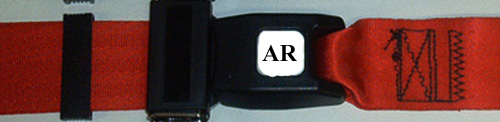

    • Buckle: Plastic Push Button

    Quantity:

    Product Notes: Click On Picture To Enlarge.
  • 8394B (10 piece minimum): Black With Globe
  • 8386RB (10 piece minimum): Black. Red Background w/White Press
  • Includes adjustable latch that allows for webbing length adjustment.
  • Buckle not guaranteed to fit an existing latch.
  • For product questions or ordering assistance call (302)629-8508.



    • Buckle: Metal Push Button

    Quantity:

    Product Notes: Click On Picture To Enlarge.
  • Buckle not guaranteed to fit an existing latch.
  • Metal. Measures 1 7/8" x 2"L not including webbing slot.
  • Adjustable latch allows for webbing length adjustment.
  • Fixed latch does not allow for webbing length adjustment.
  • Contact us for pricing on 10+
  • For product questions or ordering assistance call (302)629-8508.

    • Buckle: Vintage Lift Lid Release

    Quantity:

    Product Notes: Click On Picture To Enlarge.
  • Buckle not guaranteed to fit an existing latch.
  • Bright chrome lift lid release. measures
  • Buckle has pull thru webbing length adjustment.
  • Contact us for pricing on 10+
  • For product questions or ordering assistance call (302)629-8508.

    • Buckle Side Webbing Sleeve

    Quantity:

    Product Notes: Click On Picture To Enlarge.
  • Sleeves are not guaranteed to fit existing buckle assembly.
  • Removable color matched mounting bolt cover included.
  • Measures: 11 1/2" long.(10 1/2" bolt hole to end)
  • 2 1/8" wide. 2" buckle recess length.
  • For product questions or ordering assistance call (302)629-8508.

    • Button Latch Stop

    Quantity:


    Product Notes: Click On Picture To Enlarge.
  • Keeps shoulder harness latch from sliding down the webbing when the seat belt is not in use.
  • The seat belts do not need to be removed in order to install.
  • Does not alter retractor safety features.
  • For product questions or ordering assistance call (302)629-8508.

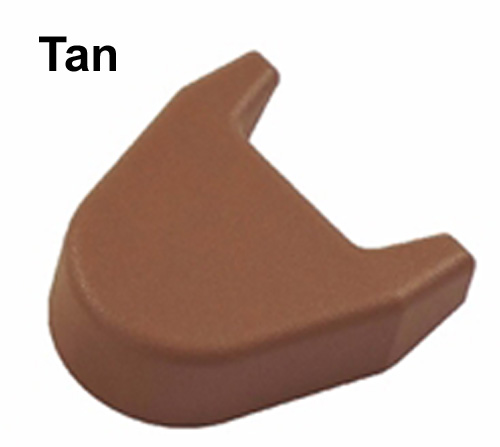

    • Cover, End Fitting

    Quantity


    Product Notes: Click On Picture To Enlarge
  • Not quaranteed to match any interior or webbing color.
  • Snaps on to bolt head covering end fitting. Sold each.
  • For product questions or ordering assistance call (302)629-8508.


    • End Fitting-Fixed

    Quantity


    Product Notes: Click On Picture To Enlarge
  • Not quaranteed to match existing end fitting.

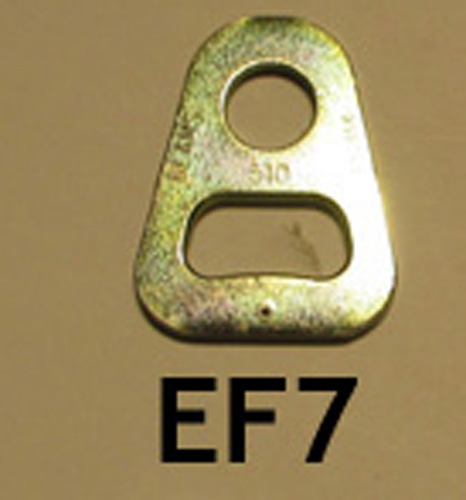

  • EF7: Yellow zinc. 1 3/4L. 1/2" bolt hole.

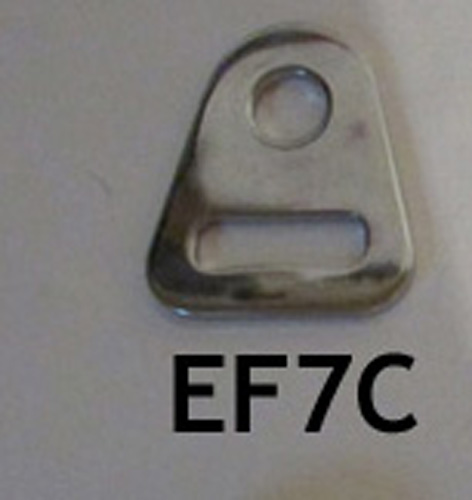

  • EF7C: Same as EF7 except chrome plated

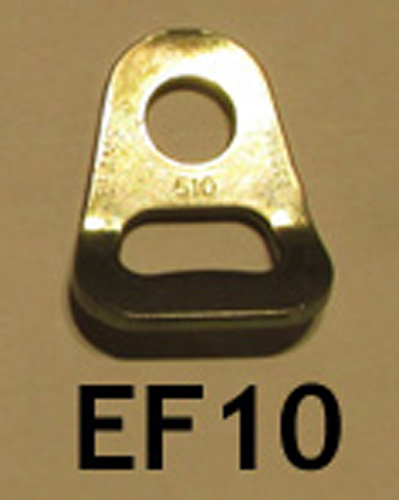

  • EF10: Yellow zinc. 1 3/4L. 30 degree bend. 1/2" bolt hole.
  • EF10C: Same as EF10 except chrome plated
  • For product questions or ordering assistance call (302)629-8508.

    • End Fitting-Sister/Snap Hook

    Quantity


    Product Notes: Click On Picture To Enlarge
  • Not quaranteed to match existing end fitting.
  • EF8C: Polished Chrome
  • EF13C: Chrome. 1 3/8"W x 2 1/2L. Spring loaded 3/8" eyebolt opeing.
  • For product questions or ordering assistance call (302)629-8508.

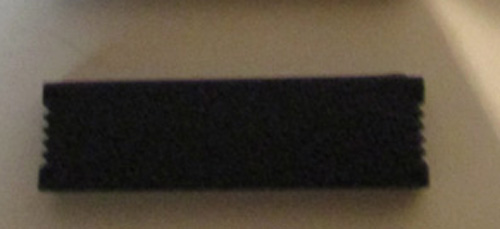

    • Retainer/Guide, Webbing

    Quantity:


    Product Notes: Click On Picture To Enlarge.
  • Additional colors are available. Contact us for availability.
  • Used to retain excess webbing.Black plastic. Measures .
  • May require the cutting and re-stitching of webbing to install.
  • For product questions or ordering assistance call (302)629-8508.




    • Retractors: Webbing Clip On

    Quantity:


    Product Notes: Click On Picture To Enlarge.
  • CR1 w/Install Instructions: Black plastic. Measures approximately 3" x 2 1/2".
  • 80296 w/Install Instructions: Chrome "Roll-A-Belt" style.
  • For product questions or ordering assistance call (302)629-8508.








    • Shoulder Harness Door Post Extension Bracket

    Quantity

    Quantity:

    Product Notes: Click On Picture To Enlarge
  • Determines distance shoulder harness webbing lowers from mounting point prior to going over shoulder.
  • Requires the cutting and re-stitching of the seat belt webbing to install.
  • For use with standard 2" (1 15/16th) wide automotive webbing.
  • MH6 shoulder bolt will allow the post bracket to swivel.

    8382B 8" Post Bracket With Cover:
  • Lowers the webbing approximately 7 1/4" from the mounting point.
  • 8 1/2' long end to end with 5/8" mounting bolt hole. 1 7/8' wide.
  • Has steel plate covered with molded hard plastic. Includes snap mounting bolt hole cover.

    8393B 2" Post Bracket With Cover:
  • Lowers the webbing approximately 1 3/8" from mounting location.
  • Bracket has 5/8" bolt hole.

    Mounting Hardware
  • MH6 Shoulder Bolt: Zinc chromate. 7/16-20 x 1 5/8". Sleeve OD 9/16. 3/4" threaded area.
  • MH7 Hex Head Bolt: Zinc chromate. 7/16-20 x 1". threaded area.
  • MH11 Hex Head Bolt: Zinc chromate. 7/16-20 x 1 1/2". 1 1/4" threaded area.
  • MH12 Lock Washer: Zinc chromate. 7/16.
  • For product questions or ordering assistance call (302)629-8508.
