General Motors GM Mark Of Excellence logo seat belts available as a non retractable lap seat belt, non retractable lap seat belt with attached shoulder harness, retractable lap seat belt and combination retractable lap seat belt with shoulder harness in colors to match most original and aftermarket interiors. The seat belts listed are not implied to be vehicle or application specific. No guarantee is made as to fit or a webbing or component color will match an existing seat belt webbing or interior color.Click Here for vehicle specific seat belts, non automotive seat belts and seatbelts for specialty applications.

All seat belts and hardware are new with all seat belts manufactured or assembled in the USA with USA certification tag confirming compliance with current FMVSS(Federal Motor Vehicle Safety Standards) 209 and 302.

Click on picture to view GM color matched push button buckle non retractable and retractable seat belts.

Non Retractable Seat Belts





Non Retractable Lap

Quantity

Click Here To View Available Webbing Colors Or To Order Webbing Samples

Upgrade Both End Fittings From 35 Degree Yellow Zinc To Chrome Flat + $2.50ea

Add MH2 Standard Mounting Kit. Yellow Zinc. $3.75ea
Add MH4 Standard Mounting Kit. Zinc Chromate $5.25ea
Add 201K Retrofit Mounting Kit. $12.00ea
Add CR1 Plastic Clip-On Webbing Retractor $9.50ea
Add 80296 Chrome "Roll-A Belt" Clip-On Webbing Retractor $20.00ea

Product Notes: Click On Picture To Enlarge
  • Available with any webbing color listed on Sample Page. Contact us for availability.
  • Length 60": Adjustable latch side 36". Fixed buckle side 24".
  • Length 74": Adjustable latch side 40". Fixed buckle side 34".
  • Length 90": Adjustable latch side 45". Fized buckle side 45".
  • Lengths are approximate.
  • MH2/MH4 standard mounting kit includes bolts, washers, nuts and oversize reinforcing washers.
  • A retrofit kit which includes underbody reinforcing plates to add support to the mounting points should be used when seat belts were not previously installed.
  • MH2/MH4 standard mounting kits are not required when purchasing a retrofit kit.
  • For product questions or ordering assistance call (302)629-8508.



  • Non Retractable Lap With Shoulder Harness

    Quantity

    Click Here To View Available Webbing Colors Or To Order Webbing Samples.

    Add MH9 Standard Mounting Kit $5.00ea
    Add 301K Retrofit Mounting Kit $20.00ea


    Product Notes: Click On Picture To Enlarge
  • Available with any webbing color listed on Sample Page. Contact us for availability.
  • Available buckle sides include a 20" non sleeved for bench seat and 12" sleeved for bucket seat.
  • The extended length less the buckle side measures approximately 95" end to end.
  • MH9 standard mounting kit includes bolts, washers, nuts and oversize reinforcing washers.
  • A retrofit kit which includes underbody reinforcing plates to add support to the mounting points should be used when seat belts were not previously installed.
  • MH9 standard mounting kit is not required when purchasing a retrofit kit.
  • For product questions or ordering assistance call (302)629-8508.




  • Non Retractable Lap With Shoulder Harness-Color Matched

    Quantity

    Click Here To View Available Webbing Colors Or To Order Webbing Samples.

    Add MH9 Standard Mounting Kit $5.00ea
    Add 301K Retrofit Mounting Kit $20.00ea


    Product Notes: Click On Picture To Enlarge
  • Available buckle sides include a 20" non sleeved for bench seat and 12" sleeved for bucket seat.
  • All plastic components plus the 12" buckle side sleeve are color matched to the webbing color.
  • Includes color matched shoulder harness door post extension bracket cover.
  • The extended length less the buckle side measures approximately 95" end to end.
  • MH9 standard mounting kit includes bolts, washers, nuts and oversize reinforcing washers.
  • A retrofit kit which includes underbody reinforcing plates to add support to the mounting points should be used when seat belts were not previously installed.
  • MH9 standard mounting kit is not required when purchasing a retrofit kit.
  • For product questions or ordering assistance call (302)629-8508.


  • Retractable Seat Belts




    Retractable Lap With 4" Retractor Boot

    Quantity

    Add 200K Standard Mounting Kit. L-Bracket For Buckle Side Not Included. $4.25ea
    Add 202K Bucket Seat Retrofit Kit. L-Bracket For Retractor And Buckle Side Included $16.25ea
    Add 204K Bench Seat Retrofit Kit. L-Bracket For Buckle Side Not Included. $13.75ea
    Add MH5 Additional L-Bracket With Hardware Kit For Buckle Side $2.75ea

    Product Notes: Click On Picture To Enlarge
  • Available with any webbing color listed on Sample Page. Contact us for availability.
  • The webbing when fully extended from retractor measures 52" Long.
  • Buckle sides include a 20" non sleeved for bench seat and 12" sleeved for bucket seat.
  • Can be used for a drivers or passenger side installation.
  • The retractor is automatic locking(ALR). When webbing has been pulled and released the retractor will lock.
  • To adjust the length one the retractor has locked release the webbing back to the retractor and re-pull.
  • 200K standard mounting kit includes bolts, washers, nuts, oversize reinforcing washers and retractor L-bracket.
  • An additional L-bracket may be required for the buckle side depending on the mounting location.
  • A retrofit kit which includes underbody reinforcing plates to add support to the mounting points should be used when seat belts were not previously installed.
  • When a retrofit mounting kit is used a 200K standard mounting kit is not required.

    For product questions or ordering assistance call (302)629-8508

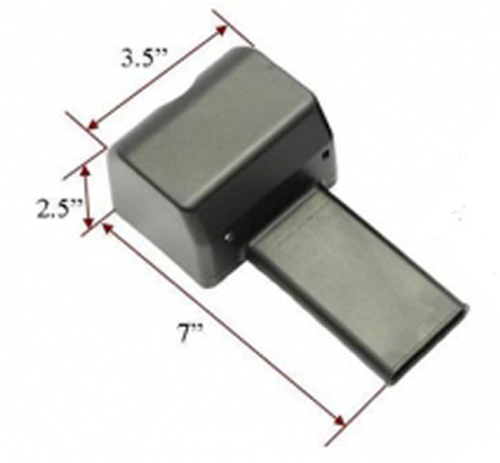

  • Retractable Lap With 7" Retractor Boot

    Quantity
    **After the webbing color indicates the retractor boot and buckle side sleeve can be ordered color matched to webbing.

    Click Here To View Available Webbing Colors Or To Order Webbing Samples

    Add(CMBS)Color Matched 12" Buckle Sleeve.Available When ordering W8334-12 Only) +$1.75ea
    Add(CM7B)Color Matched 7" Retractor Boot +$2.50ea

    Add 200K Standard Mounting Kit. L-Bracket For Buckle Side Not Included. $4.25ea
    Add 202K Bucket Seat Retrofit Kit. L-Bracket For Retractor And Buckle Side Included $16.25ea
    Add 204K Bench Seat Retrofit Kit. L-Bracket For Buckle Side Not Included. $13.75ea
    Add MH5 Additional L-Bracket With Hardware Kit For Buckle Side $2.75ea

    Product Notes: Click On Picture To Enlarge
  • Available with any webbing color listed on Sample Page. Contact us for availability.
  • Unless color matched retractor boot and buckle sleeve are available and ordered they will be black.
  • The webbing fully extended from the retractor measures approximately 54" Long.
  • Buckle sides include a 20" non sleeved for bench seat and 12" sleeved for bucket seat.
  • 200K standard mounting kit includes bolts, washers, nuts, oversize reinforcing washers and retractor L-bracket.
  • An additional L-bracket may be required for the buckle side depending on the mounting location.
  • A retrofit kit which includes underbody reinforcing plates to add support to the mounting points should be used when seat belts were not previously installed.
  • When a retrofit mounting kit is used a 200K standard mounting kit is not required.

    For product questions or ordering assistance call (302)629-8508






  • Quantity

    **After the webbing color indicates when ordering with a 2" DPE all the plastic pieces can be ordered color matched to webbing.

    Click Here To View Available Webbing Colors Or To Order Webbing Samples

    Add(CM3PTR)Color Matched Retractor Cover + 2" DPE Cover +$2.50ea
    Add(CMBS)Color Matched 12" Buckle Sleeve.Available When ordering W8327 Series Only) +$1.75ea


    Add 300K Standard Mounting Kit. L-Bracket For Buckle Side Not Included. $5.25ea
    Add 303K Retrofit Mounting Kit. L-Bracket For Buckle Side Not Included. $22.50ea
    Add 302K Retrofit Mounting Kit. L-Bracket Retractor And Buckle Side Included. $25.75ea
    Add MH5 Additional L-Bracket With Hardware Kit For Buckle Side $2.75ea

    Add ADJ3B Black Latch Stop Button $2.50ea
    Add BZ1-1B Black Deck Or Trim Panel Bezel $10.00ea
    Add BZ1-1T Tan Deck Or Trim Panel Bezel $10.00ea



    Product Notes: Click On Picture To Enlarge
  • Available with any webbing color listed on Sample Page. Contact us for availability.
  • Contact us to order with custom lengths and sets without a DPE door post bracket.
  • Can be used for a drivers or passenger side installation.
  • The webbing fully extended from retractor measures approximately 140" long.
  • Buckle sides include a 20" non sleeved for bench seat and 12" sleeved for bucket seat.
  • A latch stop button keeps the latch from sliding down the webbing when seat belt is not in use.
  • The retractor is web sensitive emergency locking(ELR) which allows for movement and locks on sudden webbing movement.

    (DPE)Door Post Extension Length Selection
  • Most installations use a standard 2" DPE which lowers the webbing approximately 1 3/8" from the mounting point.
  • A 8" DPE will lower the webbing approximately 7 1/2" from the mounting point.

    Mounting Hardware Selection
  • 300K standard mounting kit includes bolts, washers, nuts, oversize reinforcing washers and retractor L-bracket.
  • An additional L-bracket may be required for the buckle side depending on the mounting location.
  • A retrofit kit which includes underbody reinforcing plates to add support to the mounting points should be used when seat belts were not previously installed.
  • When a retrofit mounting kit is used a 300K standard mounting kit is not required.

    For product questions or ordering assistance call (302)629-8508


  • Specialty Mounting Brackets

    Quantity:
    Add MH2 Mounting Kit Per bracket. $3.75ea

    Product Notes: Click On Picture To Enlarge.
  • RB2: 2" long L-bracket.
  • RB6: 1 1/2" long L-bracket.
  • RB7: 3" long flat extension..
  • RB8-L: 7" long left angle bracket. 65 degree bend.
  • RB8-R: 7" long right angle bracket. 65 degree bend.
  • RB9: 5" long double angle bracket. Special Order.Allow 14-21 days.
  • RB10: 12" long angle bracket. Special Order.Allow 14-21 days.
  • RB11: 6" long flat extension.
  • Lengths are approximate.
  • For product questions or ordering assistance call (302)629-8508.


  • Reinforcement Plates

    Quantity:
    Add MH11 Mounting Bolt Per Plate $1.30ea
    Add MH12 Lock Washer Per Plate $.35ea

    Product Notes: Click On Picture To Enlarge.
  • RB1-1: Curved steel with attached weldnut. Measures 4 1/2" x 3".
  • RB1: Same as RB-1 except pair.
  • RB3: Steel with attached weldnut. Measures 4 1/2"(not including tip) x 1 1/2".
  • RB4: Threaded. Accepts 7/16th fine thread bolt. Measures 3" x 1 1/2".
  • Lengths are approximate.
  • For product questions or ordering assistance call (302)629-8508.
